Improve thermal efficiency Biomass Fuel Boiler Natural circulation boiler small footprint
Product Description
Biomass boilers are very similar to conventional gas boilers that you will be familiar with, providing you with space heating and hot water for the entire home, but instead of using gas (or oil) to produce the heat, they combust sustainable source such as straw, rice bran, sawdust, bark, peanut shells, Stick, Miscanthus, Wood shavings, etc.
Performance advantages

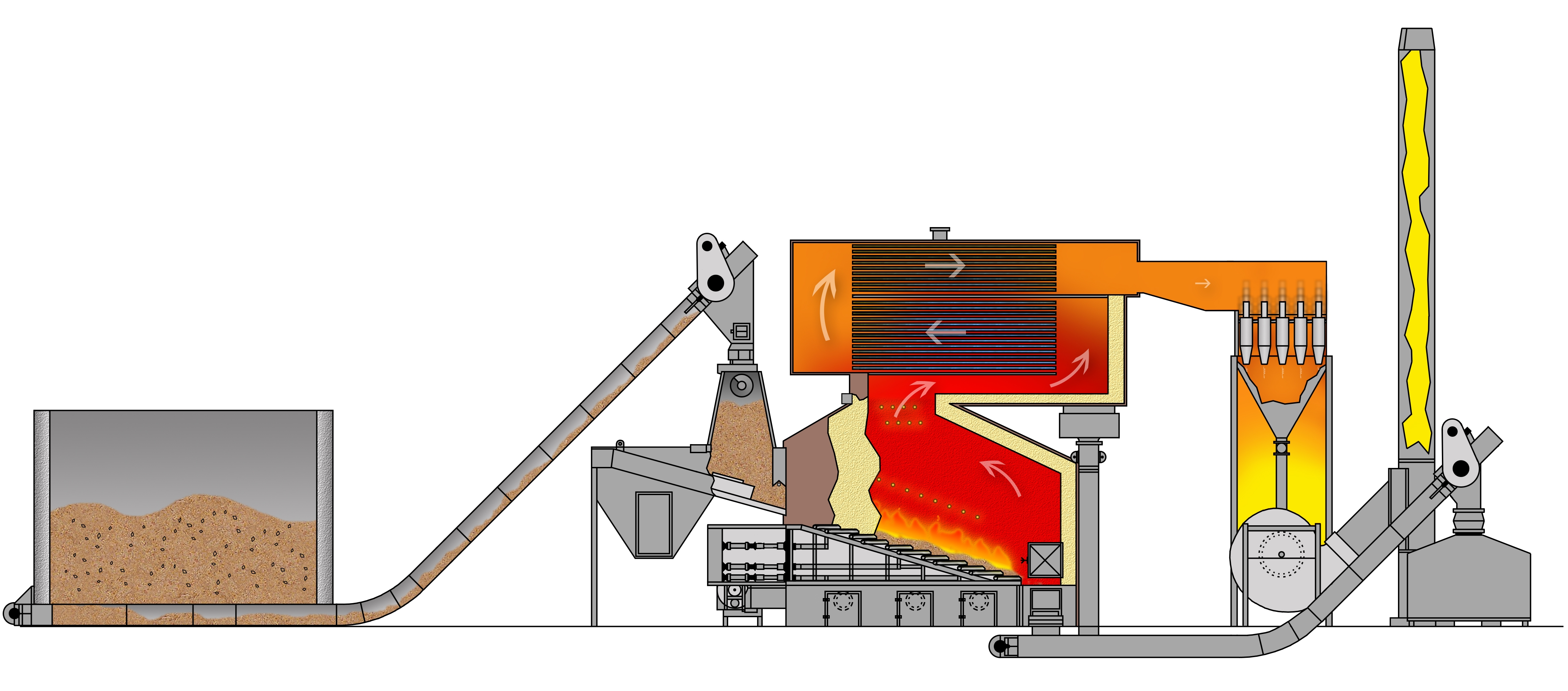

1. The dense drainage cooling tube or membrane wall structure of radiation heat transfer segment, the convective heat transfer segment S-type multibackhaul heat exchanger tail arrangement of efficient fin economizer heat exchanger, high thermal efficiency.
2. Boiler quality insulation materials and special construction technology, less heat loss, the exhaust gas temperature is low, the high thermal efficiency of the boiler.
3. Heightening grate combustion chamber, the layout of the combustion of secondary air, fuel combustion evenly and high combustion efficiency.
4. Arch special design to grate, grate divided the warehouse into the wind, independent adjustment of air volume, fuel adaptability.
5. Heating surface arrangement is adequate and reasonable, the boiler temperature fast start.
Parameter
| Model | SZL2-1.25-T
SZL2-1.6-T
SZL2-2.5-T | SZL4-1.25-T
SZL4-1.6-T
SZL4-2.5-T | SZL6-1.25-T
SZL6-1.6-T
SZL6-2.5-T | SZL8-1.25-T
SZL8-1.6-T
SZL8-2.5-T | SZL10-1.25-T
SZL10-1.6-T
SZL10-2.5-T | SZL15-1.25-T
SZL15-1.6-T
SZL15-2.5-T | SZL20-1.25-T
SZL20-1.6-T
SZL20-2.5-T |
| Rated evaporation capacity(t/h) | 2 | 4 | 6 | 8 | 10 | 15 | 20 |
| Maximum weight of shiooingpart(MPa) | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 | 1.25/1.6/2.5 |
| Rated steam temperature(℃) | 193/204/226 | 193/204/226 | 193/204/226 | 193/204/226 | 193/204/226 | 193/204/226 | 193/204/226 |
| water-suooly temperature(℃) | 20 | 20 | 20 | 60 | 60 | 104 | 104 |
| Boiler(m2) | 59.5 | 93.7 | 156 | 196.7 | 238.3 | 335.5 | 412 |
| Coal economizer(m2) | 24.61 | 35.2 | 87.2 | 209.3 | 244.4 | 174.4 | 236 |
| Air preheater(m2) | — | — | — | — | — | 82.4 | 181 |
| Effective area of grate(m2) | 4 | 5.24 | 7.7 | 9.4 | 11.96 | 17.8 | 21.8 |
| Boiler volume(m3) | 4.3 | 6.5 | 7.3 | 9.6 | 12.4 | 15 | 21 |
| Design efficiency(%) | >82 | >82 | >83 | >83 | >84 | >84 | >84 |
| Applicable fuel | Biomass Briquetting |
| Maximum size of shipping part(m) | 7×2.5×3.53 | 7.5×2.6×3.53 | 602×2.8×3.53 | 7.6×3.28×3.53 | 7.6×3.28×3.53 | 9.76×3.36×3.53 | 11×3.36×3.54 |
| Maximum weight of shipping part(t) | 32 | 34 | 26 | 29 | 31 | 42 | 51.5 |
| Overall size of installation(m) | 7.5×3.3×4.5 | 8×3.6×4.5 | 8.3×5.7×6.2 | 8.9×5.7×6.7 | 9.8×5.7×6.2 | 10.9×5.7×6.7 | 12×5.8×6.8 |
| Draught fan | GY2-15 3 | YX9-35 8C 22 | GY6-1 30 | GY10-1 45 | GY10-15 55 | Y5-47 12D 75 | Y5-47 12.4D 90 |
| Blower fan | GG2-11 3 | T4-72 4.5A 7.5 | T4-72 5A 11 | GG6-1 7.5 | GG6-1 7.5 | GG8-1 11 | GG10-1 18.5 |
| Overfire air blower fan(kw) | 9-26 3.2A 1.5 | GG1-15 3 | GG2-15 5.5 | T4-72 4A 7.5 | T4-72 4.5A 7.5 | GG4-15 15 | 9-26 8D 22 |
| Speed governor(kw) | GL-5P 0.37 | GL-5P 0.37 | GL-10P 0.75 | GL-16P 1.1 | GL-16P 1.1 | GL-20P 1.5 | GL-20P 1.5 |
Certifications
Company Information
HD Boiler established in 1985, Zhangjiagang Hua Dong Boiler Co., Ltd. (trading as HD Boiler), is a professional industrial manufacturer, producing utility boiler,industrial boiler,HRSG boiler and all kinds of boiler parts, such as waterwall panels, economizers, air preheaters, superheaters, headers, spiral fin tubes, H-fin tubes, heat pipes etc. HD Boiler is located in Dong Lai Industrial Park, east suburb of Zhang Jia Gang City. The plant’s location is around 150km Expressway to Shanghai Port or 60km State Road to Suzhou or Wuxi, with transportation extending in all directions conveniently and quickly.
